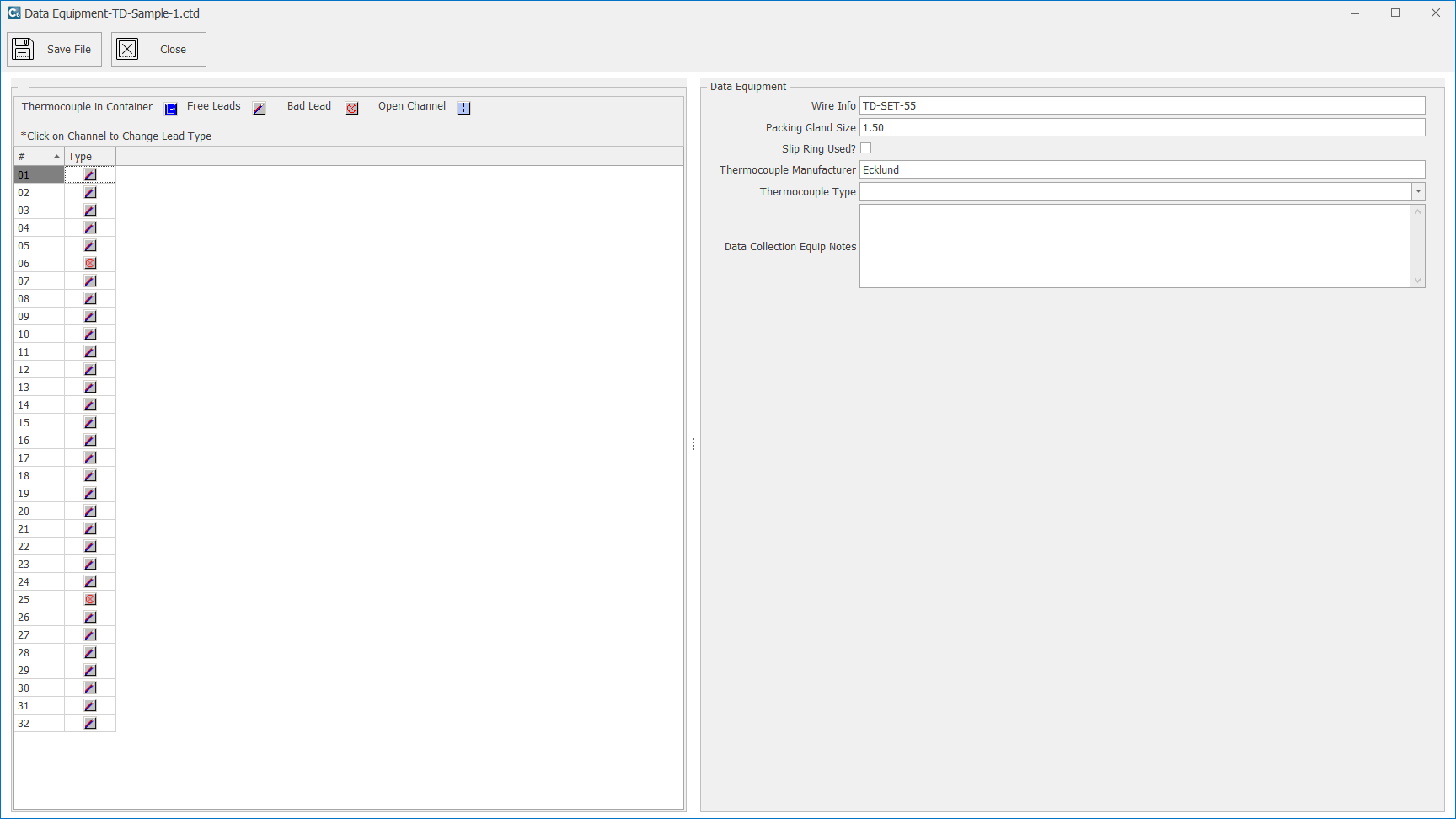

The Equipment section is divided into two main parts:
- CALPLEX CONNECTIONS: This section shows you the 32 channels of the CALPlex datalogger and what type of lead (Thermocouple in Container, Free Lead, Bad Lead, or Open Channel) was plugged into each during the test. You can change the type of lead by clicking on the channel to rotate through the options.
- DATA EQUIPMENT: (OPTIONAL) You may record information about the data-collection equipment such as packing gland size, type of thermocouples used, and information about the wires used in the testing.
