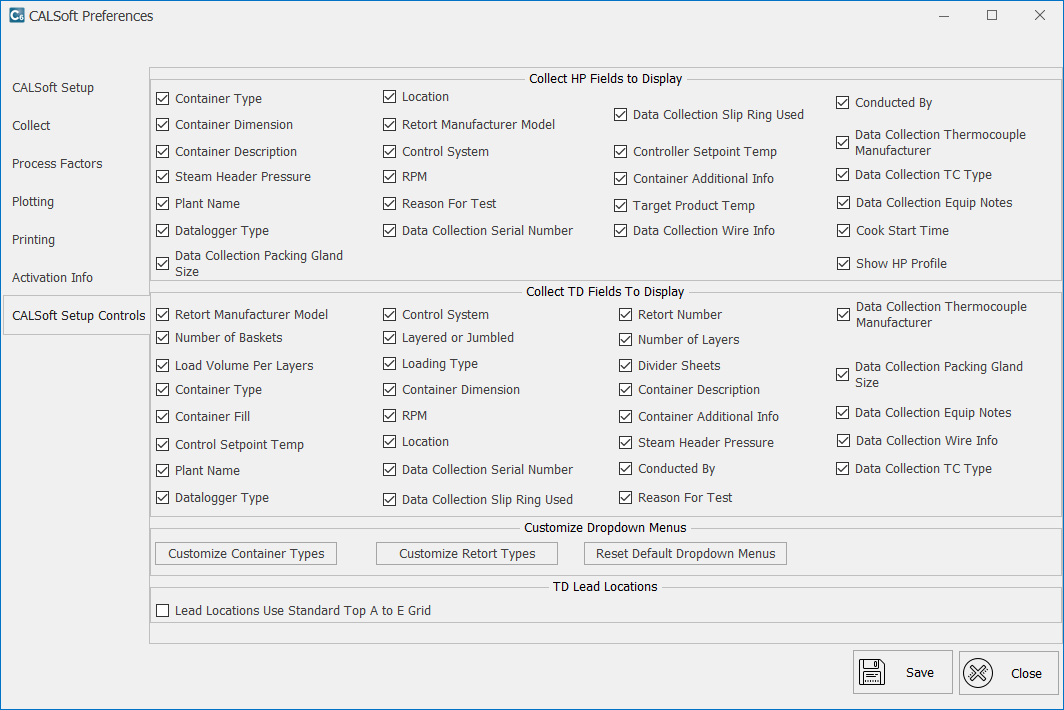

The CALSoft Setup Controls tab provides customization to the CALSoft 6 application. Within the Preferences window, click the "CALSoft Setup Controls" tab to access the following preferences:
Collect HP Fields To Display- You can check or uncheck which controls you want to have displayed for use in the Collect/Edit screens of an HP File in CALSoft 6.
Collect TD Fields To Display- You can check or uncheck which controls you want to have displayed for use in the Collect/Edit screens of a TD File in CALSoft 6.
Customize Dropdown Menus- You can edit and customize the Container Type and/or Retort Type dropdown menus. These are found in multiple places throughout the CALSoft software, and give you the option of selecting what type of container and/or retort you are using for testing. Clicking "Customize Container Types" or "Customize Retort Types" allows you to customize the options you see whenever you click on a Container Type or Retort Type dropdown menu. Click "Reset Default Dropdown Menus" to have the dropdown menus reset to their original lists of options.
TD Lead Locations- In the TD Lead Locations section (within a TD file), the last column is where you can specify the "Top View" location of the lead. If "Lead Locations Use Standard Top A to E Grid" is checked on the CALSoft Setup Controls tab of the preferences window, you can only choose A, B, C, D, or E as the Top View for a lead. If this option is unchecked, you can input any text for the Top View, and the Top View graphic is no longer shown on the Lead Locations page (the Side View graphic is still down).
